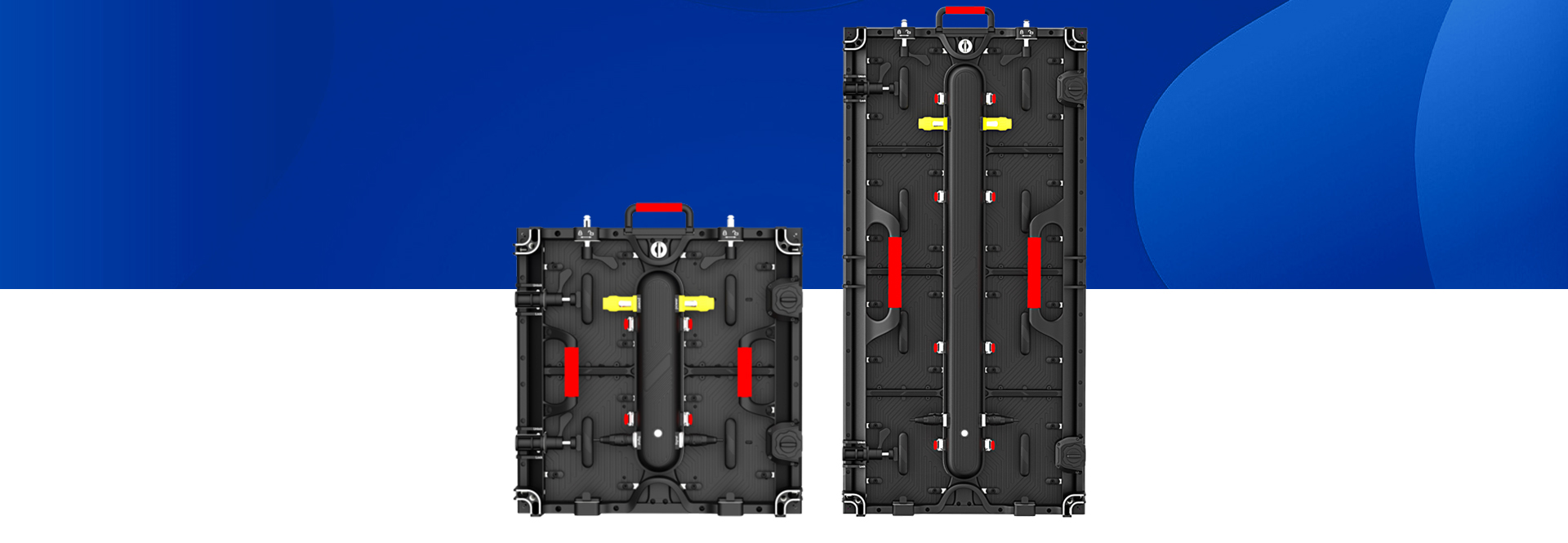

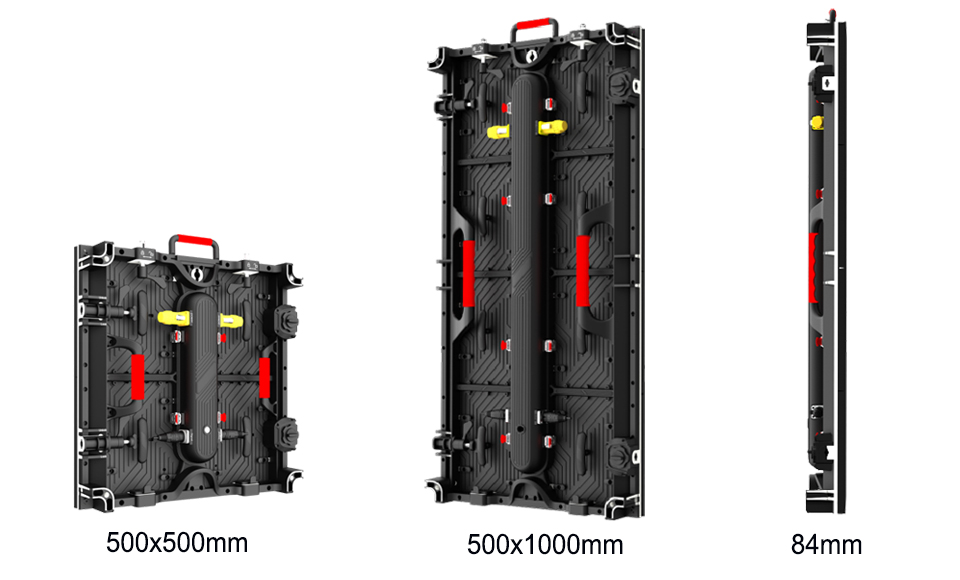

• 500x500mm cabient is 8kg/pc 500x1000mm cabient is 14kg/pc
• easy to move and install on different events

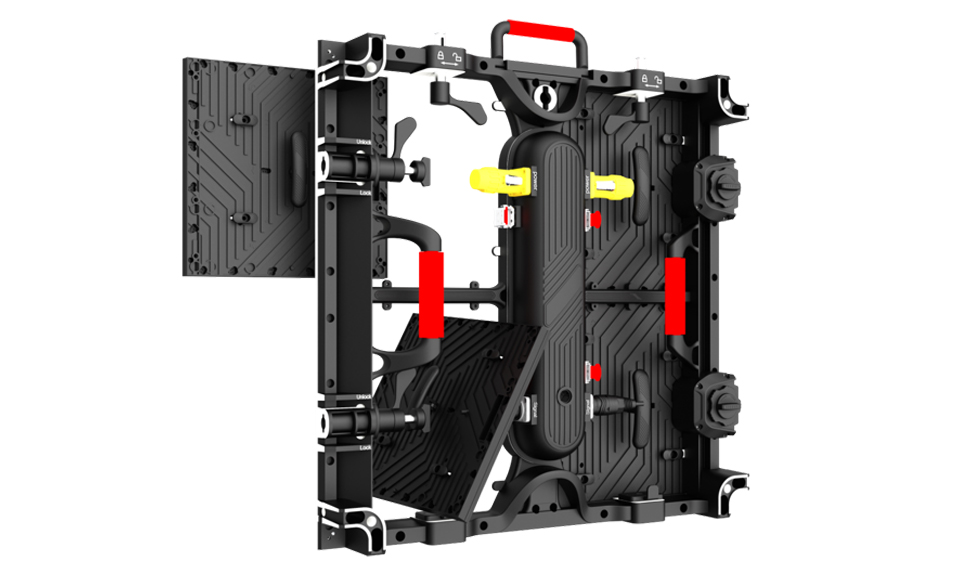

• Supports front and back maintenance, easy operation.
• Hidden cable design,no cable between modules,plug and play.

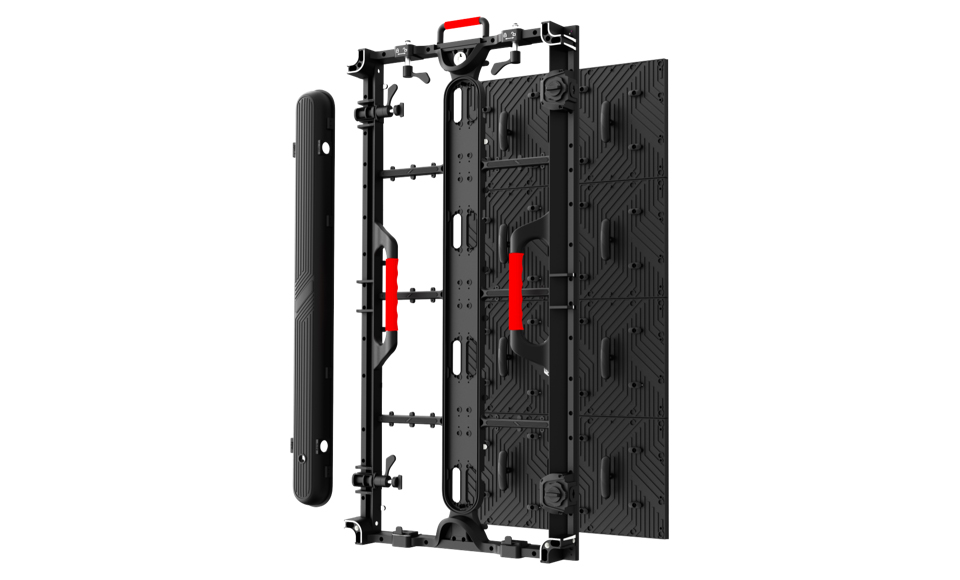

• The cabinet frame, module and power box are three independent modular structures. Each structure can be disassembled and assembled independently, easy and fast maintenance.

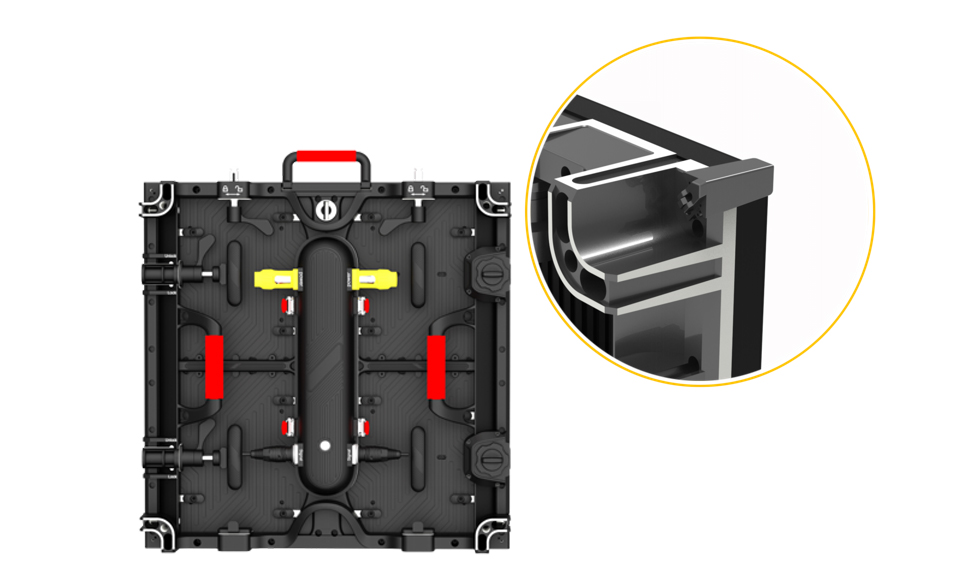

•Each cabinet has four protective corners to help prevent collision damage to the LED modules during installation, unloading and transportation.

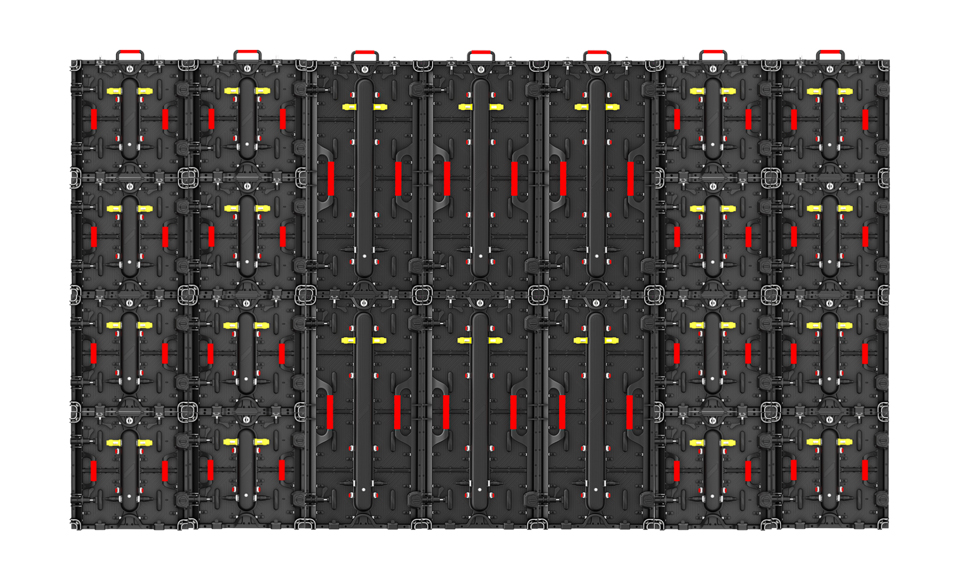

•500x500mm and 500x1000mm cabinet can be seamless mixed splicing,idea for different installation requests.

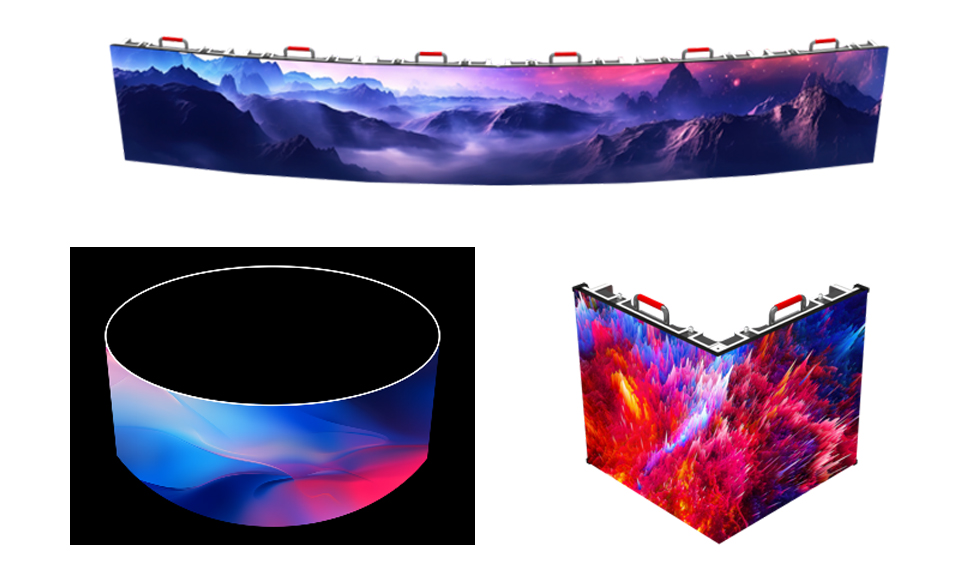

•curved rental screen delivers stunning visuals with seamless transitions, ideal for dynamic stage designs. It supports straight, 90° splicing, and curved with ±22.5° arcs, ensuring versatile configurations to meet the needs of various scenarios.
Model |
P1.56 |
P1.95 |
P2.6 |
P2.97 |
P3.91 |
Pixel Pitch |
1.56mm |
1.95mm |
2.6mm |
2.97mm |
3.91mm |
LED Module Size(mm) |
250x250 |
250x250 |
250x250 |
250x250 |
250x250 |
Cabinet Size:(mm) |
500x500x84/500x1000x84 |
500x500x84/500x1000x84 |
500x500x84/500x1000x84 |
500x500x84/500x1000x84 |
500x500x84/500x1000x84 |
Cabinet Weight(kg) |
8kg/14kg |
8kg/14kg |
8kg/14kg |
8kg/14kg |
8kg/14kg |
Brightness(nits) |
>1000 |
>1000 |
>1000 |
>1000 |
>1000 |
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
Gray Scale |
14-16Bits |
14-16Bits |
14-16Bits |
14-16Bits |
14-16Bits |
